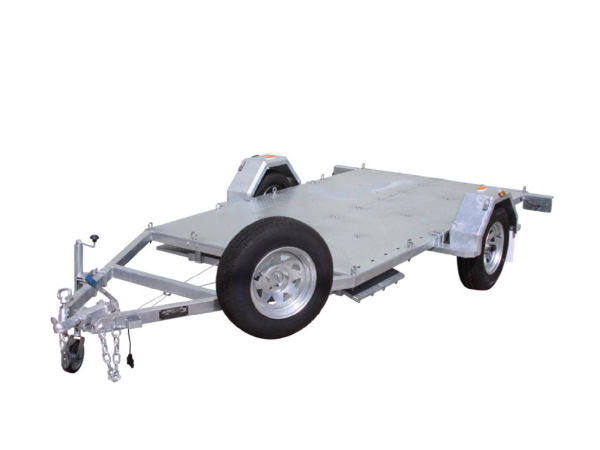

Galvanised ATV Trailer

Heavy Duty

Our ATV Trailers are built to last. Being hot dip galvanized ensures that the trailer
will look great for years - no paint can chip or scratch.
The trailer is fully welded - unlike many cheaper trailers on the market which are simply bolted together and rattle apart.

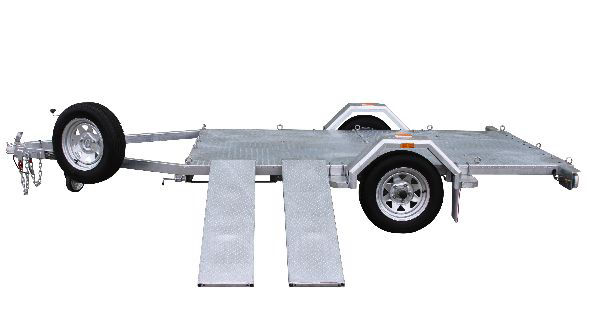

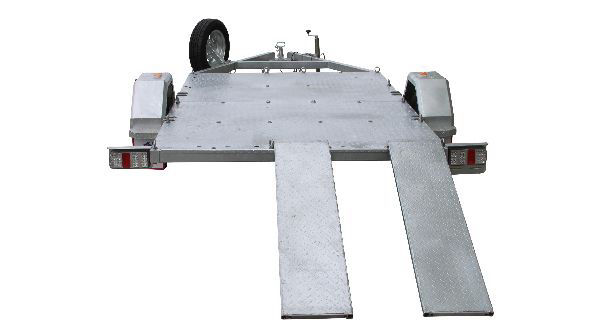

The trailer comes with loading ramps which conveniently slide away and lock in place when not in use. Loading can be done from the side or rear using the ramps which lock in place. The floor of the trailer is 2.5mm checker plate.  There are multiple lashing rings on the floor of the trailer to tie down whatever you choose to carry be it ATV, Golf Buggy or Trail Bikes.

The trailer comes with Sunraysia rims and LED lights which gives it a modern look.

If you ever need to replace the bearings, axles, springs or wheels they are easily obtainable and we carry them in stock.

All Trailers come with a 12 month warranty

Galvanised ATV Trailer


LOA; 4135
Width; 2146
ATM: 1500 kg
TM: 403 kg
Payload: 1097 kg
Tray Size: 3000MM x 1660MM
Coupling; Apv; AS 4177.3
Safety Chain Apv: 2 x PWB4177-25
Plug: 7 Pin Flat
Plug Holder: 3mm
Draw Bar: 70 x 50 x 3 mm
Side Rail: 70 x 50 x 3 mm
Cross Members: 70 x 50 x 2.5 mm
Axle: 50mm Solid Round
Bearings; LM67048/10 & LM11949/10
Seals: Water Proof
Dust Cap: Greasable/Pressurised
Tyres: 185 R14C
Rims: Galvanized 14 x 4.5 x 5 Stud
Springs: 50 x 7 x 6 Leaf
Hanger 6mm Thick
Tie Downs: 10mm
Lights: 2 x LED
Reversing Light: 1 x LED
Production: Fully Welded
Surface Treatment; Hot Dipped Galvanized

Galvanised ATV Trailer

Price & Optional Accessories

ATV Trailer

14' Spare Wheel

Spare Wheel Bracket

Jockey Wheel
6' $49
8' $79

12 Months Registration & Stamp Duty
$202 - $215
Depending on Accessories

Enquire About Our ATV Transport Trailer

If you have any question then please call or email
