Heavy Duty

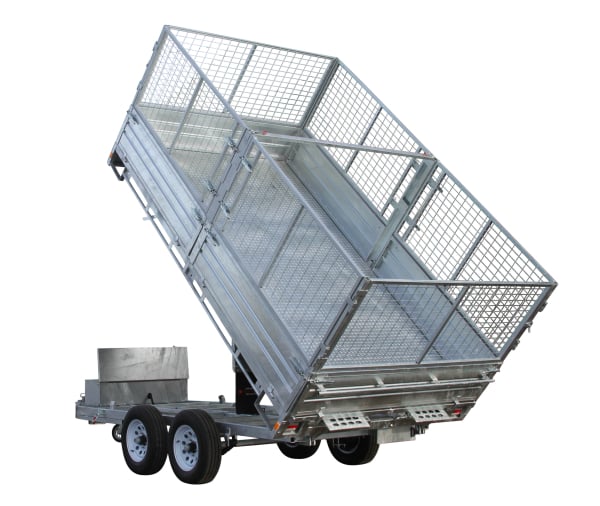

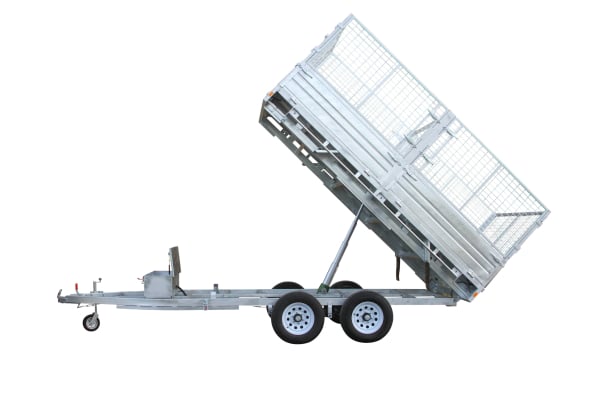

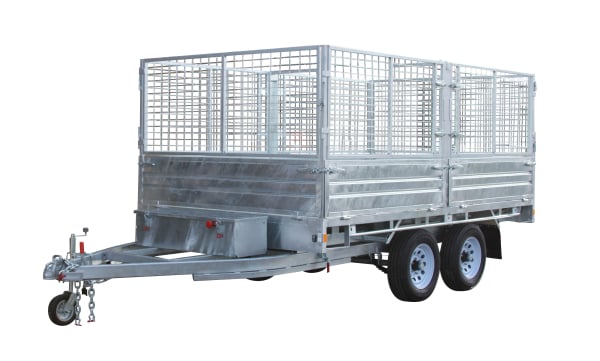

Our 12 x 7  Flat Top Hydraulic Tipper Trailers are extremely versatile. The trailer comes with a 900MM removable cage with versatile loading options i.e. each section is isolated. The hinged removable sides & tailgate allow you to use it as a box trailer or a flat top or flat bed trailer.  Pallets can be loaded on at either side or the rear.  Heavy duty ramps which are transported under the tray can be used for loading plant equipment such as bobcats. The 4 stage hydraulic ram exceeds the payload and will increase your business's efficiency.

Being hot dip galvanized ensures that the trailer
will look great for years - no paint can chip or scratch.
The trailer chassis is fully welded - unlike many cheaper trailers on the market which are simply bolted together and rattle apart.

The floor of the trailer is 2.5mm checker plate and the welded on 20mm round tie down rails will ensure your load doesn't shift. Its has 60mm solid round axles.

The trailer comes with 15' rims.  The LED lights gives it a modern look.

If you ever need to replace the bearings, axles, springs or wheels they are easily obtainable and we carry them in stock.

All Trailers come with a 12 month warranty


Specifications

LOA: 5675MM
Width: 2260MM
ATM: 3500 kg
TM: 1780 kg
TM Excluding Cage & Tailgate 1500 kg
Payload: 1720 kg
Coupling: Apv; AS 4177.3
Safety Chain Apv: 2 x PWB4177-35
12' Dual Axle Electric Drum Brakes
Breakaway System
Plug: 7 Pin Flat
Chassis Fully Welded 100 x 50 x 5mm
Draw Bar: 100 x 50 x 5 mm
Frame: 100 x 50mm
Checker Plate Floor: 2.5mm Low Height
Tray Size: 3570 x 2045mm (internal)
Side Panels: 450mm High x 2.5mm Thick
Cage Height: 900mm
Axle: 60mm Solid Round
Bearings: Dexter
Tie Down Rail: 20mm Round
Dust Cap
Tyres: 195 R15LT (New)
Rims: White 15 x 6 x 6 Stud
Springs: Rocker Roller 60 x 7 x 9 Leaf
Fish Plate: 100 x 100 x 8mm
Lights: 2 x LED
Production: Fully Welded
Surface Treatment: Hot Dipped Galvanized

Price & Optional Accessories

12 x 7 Flat Bed Hydraulic Tipper Trailer
$12000
Including 2 Heavy Duty Loading Ramps
900mm Removable Cage


15' Spare Wheel $180
Spare Wheel Bracket $35

Jockey Wheel
10' $110

12 Months Registration & Stamp Duty
$575-$584

Notes

The trailer requires a car mounted electric brake controller
