Our 10x 6 Hydraulic Box Trailers will save you hours in manual work. The 4 stage hydraulic ram exceeds the payload and will increase your business's efficiency.
Being hot dip galvanized ensures that the trailer
will look great for years - no paint can chip or scratch.
The floor of the trailer is 2.5mm checker plate and the walls are also 2.5mm thick. Welded on 20mm round tie down rails will ensure your load doesn't shift. Its has 60mm solid round axles.
If you ever need to replace the bearings, axles, springs or wheels they are easily obtainable and we carry them in stock.
All Trailers come with a 12 month warranty
Coupling: Apv; AS 4177.3
Safety Chain Apv: 2 x PWB4177-25
12' Dual Axle Electric Drum Brakes
Breakaway System
Plug: 7 Pin Flat
Draw Bar: 100 x 50 x 2.5 mm
Frame: 70 x 50mm
Checker Plate Floor: 2.5mm Low Height
Side Panels: 2.5mm Thick
Axle: 60mm Solid Round
Bearings: Dexter
Tie Down Rail: 20mm Round
Dust Cap
Tyres: 195 R15LT
Rims: White 15 x 6 x 6 Stud
Springs: 60 x 7 x 9 Leaf
Fish Plate: 100 x 100 x 8mm
Lights: 2 x LED
Surface Treatment: Hot Dipped Galvanized

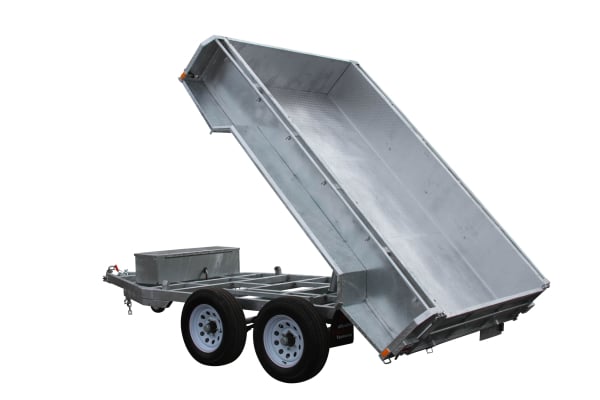

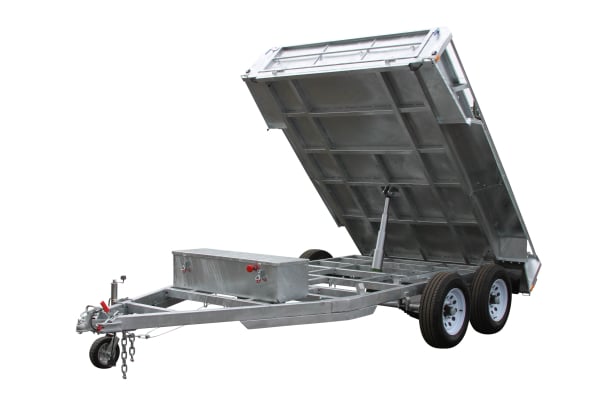

10 x 6 Tandem Hydraulic Box Trailer
$9500
10 X 6 Box Trailer Cage
600MM $530
900MM $650
Cage Cover
600MM $380
900MM $410
Cover Supports $25
15' Spare Wheel $180
Spare Wheel Bracket $35
Jockey Wheel
10' $110
12 Months Registration & Stamp Duty
$500 - $545
Notes
The trailer requires a car mounted electric brake controller
A battery is required to operate the hydraulic ram
Battery Not Included
