8 x 5 Braked Box Trailer

8 x 5 1 Ton Box Trailer

Heavy Duty

Our 8 x 5  1400KG ATM Box Trailers are built to last.
Being hot dip galvanized ensures that the trailer
will look great for years - no paint can chip or scratch.
The trailer is fully welded - unlike many cheaper trailers on the market which are simply bolted together and rattle apart.

The floor of the trailer is 2.5mm checker plate and the walls are also 2.5mm thick.  Welded on 20mm round tie down rails will ensure your load doesn't shift. It has a 50mm solid round axle.

The trailer comes with Sunraysia rims and LED lights which gives it a modern look.

This model has the added option of a winch kit for easy loading & unloading - see pics below.

If you ever need to replace the bearings, axles, springs or wheels they are easily obtainable and we carry them in stock.

The trailer has a tipping function for easy loading and unloading.

All Trailers come with a 12 month warranty

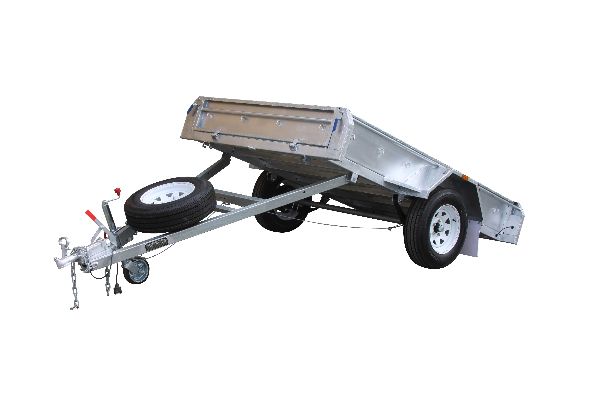

8 x 5 Box Trailer With Tipping Function

Specifications

LOA: 4055MM
Width: 2040MM
ATM: 1400 kg
TM: 398kg
Payload: 1002kg
Coupling: Apv; AS 4177.3
Safety Chain Apv: 2 x PWB4177-25
Plug: 7 Pin Flat
Draw Bar: 70 x 50 x 4 mm
Frame: 50 x 50 x 3 mm
Checker Plate Floor: 2.5mm Low Height
Side Panels: 2.5mm Thick
Axle: 50mm Solid Round
Tie Down Rail: 20mm Round
Bearings: SL
Dust Cap
Tyres: 185 R14LT/C
Rims: White 14 x 6 x 5 Stud
Springs: 45 x 8 x 7 Leaf
Fish Plate: 100 x 100 x 8mm
Lights: 2 x LED
Production: Fully Welded
Surface Treatment: Hot Dipped Galvanized

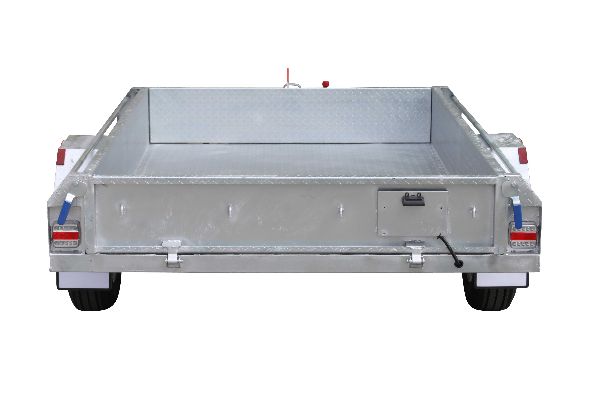

8 x 5 Box Trailer With Brakes

Price & Optional Accessories

8 x 5 Braked Box Trailer
14' Wheels $2655

Cage
600MM $420
900MM $545

Cage Cover
600MM $270
900MM $345
Cage Cover Supports $25 Each

14' Spare Wheel $158
Spare Wheel Bracket $25

Cargo Racks (Pair) $210
Cargo Rack Infill $250
Winch Kit $209

Jockey Wheel
6' $49
8' $79
10' $110

12 Months Registration & Stamp Duty $185-$245
Depending on Accessories
