8 x 5 Box Trailer With 14' Wheels

8 x 5 Box Trailer

Heavy Duty

Our 8 x 5 Box Trailers are built to last. Being hot dip galvanized ensures that the trailer
will look great for years - no paint can chip or scratch.
The trailer is fully welded - unlike many cheaper trailers on the market which are simply bolted together and rattle apart.

The floor of the trailer is 2.5mm checker plate and the walls are also 2.5mm thick. Welded on 20mm round tie down rails will ensure your load doesn't shift. It has a 40mm solid round axle.

The trailer comes with Sunraysia rims and LED lights which gives it a modern look.

If you ever need to replace the bearings, axles, springs or wheels they are easily obtainable and we carry them in stock.

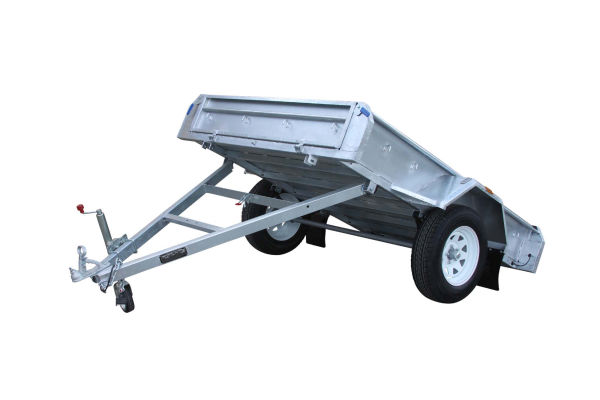

The trailer has a tipping function for easy loading and unloading.

All Trailers come with a 12 month warranty

8 x 5 Box Trailer


LOA: 3680MM
Width: 2050MM
ATM: 750 kg
TM: 330kg
Payload: 420kg
Coupling: Apv; AS 4177.3
Safety Chain Apv: 2 x PWB4177-25
Plug: 7 Pin Flat
Draw Bar: 70 x 50 x 2.75 mm
Frame: 50 x 50 x 3 mm
Checker Plate Floor: 2.5mm Low Height
Side Panels: 2.5mm Thick
Axle: 40mm Solid Round
Tie Down Rail: 20mm Round
Bearings; LM67048/10 & LM11949/10
Dust Cap
Tyres: 185/80 R14
Rims: White 14 x 6 x 5 Stud
Springs: 50 x 7 x 4 Leaf
Fish Plate: 100 100 x 6mm
Lights: 2 x LED
Production: Fully Welded
Surface Treatment: Hot Dipped Galvanized

8 x 5 Box Trailer

Price & Additional Options

8 x 5 Box Trailer
14' Wheels $2165

600MM Cage $420
900MM Cage $545

600MM Cage Cover $270
900MM Cage Cover $345
Cage Cover Supports $25

14' Spare Wheel $154
Spare Wheel Bracket $25

Cargo Racks (Pair) $210
Cargo Rack Infill $250

Jockey Wheel
6' $49
8' $79

12 Months Registration & Stamp Duty
Depending on Accessories
