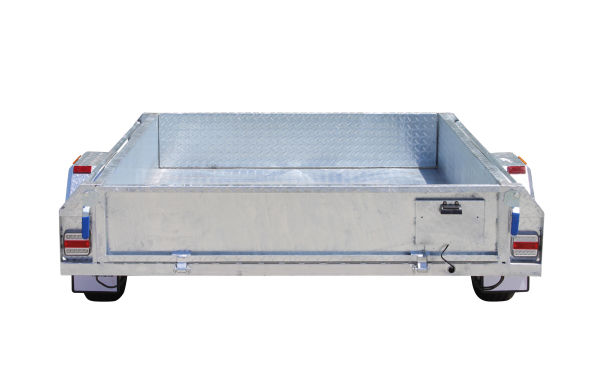

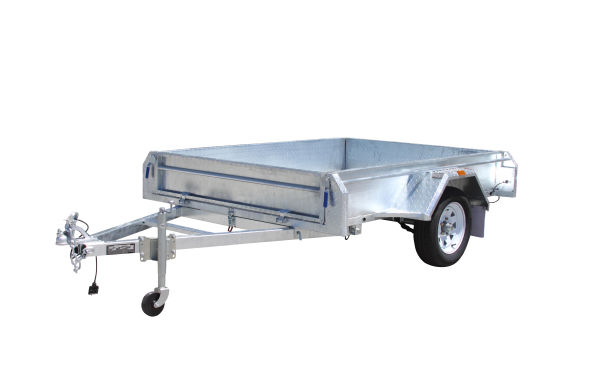

7 x 5 Box Trailer

7 x 5 Box Trailer

Heavy Duty

Our 7 x 5 Box Trailers are built to last. Being hot dip galvanized ensures that the trailer
will look great for years - no paint can chip or scratch.
The trailer is fully welded - unlike many cheaper trailers on the market which are simply bolted together and rattle apart.

The floor of the trailer is 2.5mm checker plate and the walls are also 2.5mm thick. Welded on 20mm round tie down rails will ensure your load doesn't shift. It has a 40mm solid round axle.

The trailer comes with Sunraysia rims and LED lights which gives it a modern look.

If you ever need to replace the bearings, axles, springs or wheels they are easily obtainable and we carry them in stock.

The trailer has a tipping function for easy loading and unloading.

All Trailers come with a 12 month warranty

7 x 5 Box Trailer

Specifications

LOA: 3380MM
Width: 2050MM
ATM: 750 kg
TM: 296kg
Payload: 454kg
Coupling: Apv; AS 4177.3
Safety Chain Apv: 2 x PWB4177-25
Plug: 7 Pin Flat
Draw Bar: 70 x 50 x 2.5 mm
Frame: 50 x 50MM
Checker Plate Floor: 2.5mm Low Height
Side Panels: 2.5mm Thick
Tie Down Rail; 20mm Round
Axle: 40mm Solid Round
Bearings: LM67048/10 & LM11949/10
Dust Cap
Tyres; 165/70 R13
Rims: White 13 x 4.5 x 5 Stud
Springs: 50 x 8 x 4 Leaf
Fish Plate: 100 100 x 8mm
Lights: 2 x LED
Production: Fully Welded
Surface Treatment: Hot Dipped Galvanized

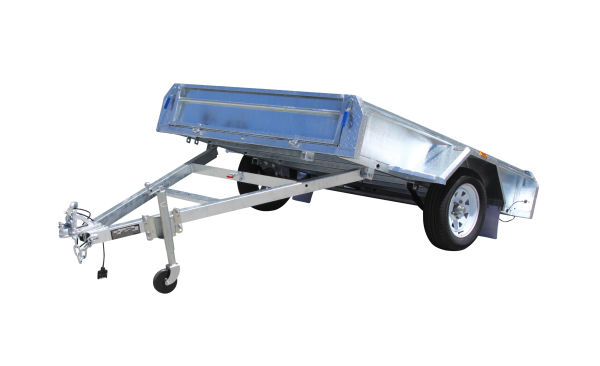

7 x 5 Box Tilting Box Trailer

Price & Optional Accessories

7 x 5 Box Trailer
13' Wheels $1630

7 X 5 Box Trailer Cage
$340

7 X 5 Box Trailer Cage Cover$240
Cage Cover Supports $15

13' Spare Wheel $115

Spare Wheel Bracket $20

Jockey Wheel
6' $39
8' $69


Registration & Stamp Duty
$153-$180
Varies depending on accessories
